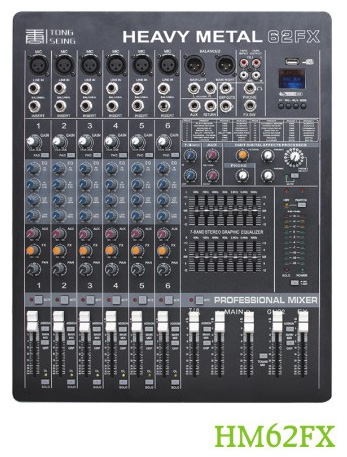

HM62FX

Time:2015-12-17 | Read:776 | Posted: Site Editor
Model
型号 		HM62FX HM82FX HM122FX HM162FX HM242FX
Mono/stereo input channels
单声道/立体声输入通道 		6/1 8/1 12/1 16/1 24/1
Mp3 Play
Mp3播放器 		Yes Yes Yes Yes Yes
Mic Preamps
麦克风输入 		6 8 12 16 24
Phantom Power
48V幻像电源 		Yes Yes Yes Yes Yes
Mono channel EQ
单声道通道均衡 		4-band 4-band 4-band 4-band 4-band
Stereo channel EQ
立体声通道均衡 		2-band 2-band 2-band 2-band 2-band
Aux Sends channel
通道辅助发送 		1 1 1 1 1
FX Returns
立体声返回 		1 1 1 1 1
FX Processor
内置效果器 		16 DSP 16 DSP 16 DSP 16 DSP 16 DSP
Subgroups
编组输出 		2 2 2 2 2
power output
功率输出 		-- -- -- -- --

Product features：
Super fashion all metal chassis design
High dynamic and low noise design mixer
High quality microphone preamplifier
Super wide range of 60 db gain
128.5 dB dynamic range
+ 22 is a line input processing
Distortion is less than 0.0007% (20 hz to 50 KHZ)
48 v phantom power condenser mic
The radio frequency interference circuit design
High dynamic line input + 4 / - 10 operational control
Mono 4 period of equilibrium (high, middle and high, low and medium, low) design
18 db / 75 hz low frequency filter microphone input channel function
1 assist to send, solo and overload/mute led tip
1 stereo return, channel independent function, of output
2 marshalling output, 60 travel long life design straight slide pusher
16 built-in DSP high quality effect
CD/mobile phone multi-input source matrix
High resolution stereo level 12 LED lights
High density dustproof durable case design
Global universal power
