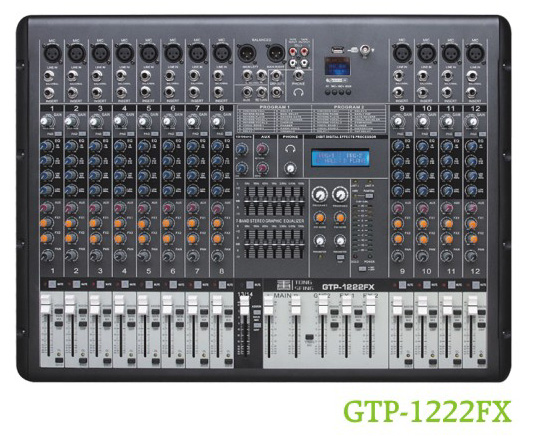

GTP1222FX
|
Model 型号 |
GTP622FX | GTP822FX | GTP1222FX | GTP1622FX |
|
Mono/stereo input channels 单声道/立体声输入通道 |
6/1 | 8/1 | 12/1 | 16/1 |
|
Mp3 Play Mp3播放器 |
Yes | Yes | Yes | Yes |
|
Mic Preamps 麦克风输入 |
6 | 8 | 12 | 16 |
|
Phantom Power 48V幻像电源 |
Yes | Yes | Yes | Yes |
|
Mono channel EQ 单声道通道均衡 |
4-band | 4-band | 4-band | 4-band |
|
Stereo channel EQ 立体声通道均衡 |
2-band | 2-band | 2-band | 2-band |
|
Aux Sends channel 通道辅助发送 |
1 | 1 | 1 | 1 |
|
FX Returns 立体声返回 |
1 | 1 | 1 | 1 |
|
FX Processor 内置效果器 |
16X2 DSP TAP | 16X2 DSP TAP | 16X2 DSP TAP | 16X2 DSP TAP |
|
Subgroups 编组输出 |
2 | 2 | 2 | 2 |
|
power output 功率输出 |
4Ohm750Wx2 | 4Ohm750Wx2 | 4Ohm750Wx2 | 4Ohm750Wx2 |
Product features：
Super fashion streamlined design
High dynamic and low noise design mixer
High quality microphone preamplifier
Super wide range of 60 db gain
128.5 dB dynamic range
+ 22 is a line input processing
Distortion is less than 0.0007% (20 hz to 50 KHZ)
48 v phantom power condenser mic
The radio frequency interference circuit design
High dynamic line input + 4 / - 10 operational control
Mono 4 period of equilibrium (high, middle and high, low and medium, low) design
18 db / 75 hz low frequency filter microphone input channel function
1 assist to send, solo and overload/mute led tip
1 stereo return, channel independent function, of output
2 marshalling output, 60 travel long life design straight slide pusher
Built-in 32 kinds of DSP high quality effect
CD/mobile phone multi-input source matrix
High resolution stereo level 12 LED lights
High density dustproof durable case design
Global universal power
