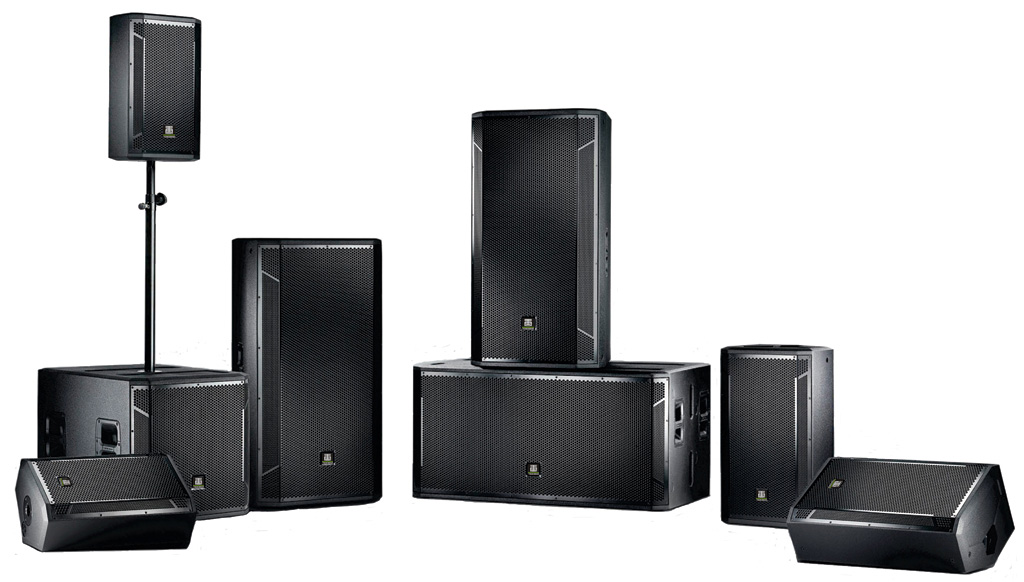

STX800 series
STX812M 12 "two frequency, bass reflex, return to the stage/general type
Special design of high performance of 12 "two frequency back to listen to the speaker, it can also be supported on a tripod or use the poles and the combination of ultra-low speakers satellite. 70 times 70 degrees of waveguide is used for precise coverage.
Features:
Compact and low minimum blocking the line of sight of the audience.
70 ¡ã 70 ¡ã nominal cover.
The bidirectional amplification or full range of passive operation.
A socket need or tripod to install the application.
High power handling capability, low distortion technology of low frequency drive.
3 inches (diaphragm) neodymium magnet compression driver.
Strong coating shell size and convenient transportation.
14 steel grille lined with soft cloth.
Specification:
Frequency range (- 10 dB) : 50 Hz - 20 kHz
Frequency response (plus or minus 3 dB) : 75 Hz - 20 kHz
Coverage control: 70 ˚ x 70 ˚ nominal
Sensitivity (1 w / 1 m) : 95 dB
Rated power of 2
(continuous pink noise/show/peak) : 800 W / 1600 W / 3200 W
Rated the loudest level 3:130 dB peak
General impedance: 8 ¦¸
Two input connectors: NL4
Operation mode: full frequency/double power amplifier
Size (high) x width x deep: 571 mm x 355 mm x 264 mm
(22.5 "x 13.4" x 10.4 ")
Net weight: 19 kg (42 LBS)
STX815M 15 "two frequency, bass reflex, return to the stage/general type
Single 15 "lightweight two frequency system design for high power amplification speaker system or back to listen to the speaker as a wide range of stage, whether it be born or installation, it can provide extremely high performance. 70 times 70 degrees cover Angle provides centralized directional control.
Features:
Compact and low minimum line blocking the line of sight of the audience.
70 ¡ã 70 ¡ã nominal cover.
The bidirectional amplification or full range of passive operation.
A socket need or tripod to install the application.
12 M10 suspension point.
High power handling capability, low distortion technology of low frequency drive.
3 inches (diaphragm) neodymium magnet compression driver.
Strong coating shell size and convenient transportation.
14 steel grille lined with soft cloth.
Specification:
Frequency range (- 10 dB) : 41 Hz - 20 kHz
Frequency response (plus or minus 3 dB) : 55 Hz - 20 kHz
Coverage control: 70 ˚ x 70 ˚
Sensitivity (1 w / 1 m) : 96 dB
Rated power of 2
(continuous pink noise/show/peak) : 800 W / 1600 W / 3200 W
Rated the loudest level 3:131 dB peak
General impedance: 8 ¦¸
Two input connectors: NL4
Operation mode: full frequency/double power amplifier
Size (high) x width x deep: 721 mm x 436 mm x 329 mm
(28.4 "x 17.2" x 13.0 ")
Net weight: 26 kg (58 LBS)
Lifting: 12 M10 hanging point
The attachment Eye bolts bolt suite
STX825 frequency double 15 "two points, the bass reflex
Double 15 "two frequency loudspeaker designed for maximum impact, portability and ease of use and design. With the broad frequency range by 50 degrees and 90 degrees cover Angle, the speaker for a band or DJ as their main amplification, or as a side of the concert stage, or as a ballroom or venues for fixed installation speaker, is the ideal choice.
Features: compact structure, high power.
Double (15 ") technology of low frequency drives very high output.
102 millimeters (4 inches) voice coil, a nd compressed drive high power capacity and very light weight
Coverage of 90 ¡ã x 50 ¡ã.
The bidirectional amplification or full range of passive operation.
Twelve M10 suspension point, can be used with optional M10 eyebolt.
Strong coating shell size and convenient transportation.
14 steel grille lined with soft cloth.
STX818S single 18 "bass reflex package options
Compact high power ultra sound system, single 18 "by the former type, the design of the ventilation cabinet, minimize the front housing area. Provide 1000 watts of continuous pink noise power load, program and 4000 watts peak power 2000 w. STX818S also comes with M20 poles mounting holes and castor suits options at the top.
Features:
18 inches bass extended low frequency output.
Big port area to reduce distortion.
20 mm socket, threaded holes satellite speakers installation of safety.
Strong coating shell size and convenient transportation.
14 steel grille lined with soft cloth.
Specifications:
Frequency range (- 10 dB) : 35 Hz - 250 Hz
Frequency response (plus or minus 3 dB) : 40 Hz - 120 Hz
Sensitivity (1 w / 1 m) : 96 dB
Rated power of 2
(continuous pink noise/show/peak) : 1000 W / 2000 W / 4000 W
Rated the loudest level 3:132 dB peak
General impedance: 8 ¦¸
Two input connectors: NL4
Operation mode: the subwoofer
Size (high) x width x deep: 558 mm x 568 mm x 718 mm
(22.0 "x 22.4" x 28.3 ")
Net weight: 45 kg (100 LBS)
STX828S double 18 "bass reflex
Double 18 "high-power subwoofer system, through the former type, the design of the ventilation cabinet to maximize the low frequency performance. STX828 series has a set of optional castor suit. Two drives provide 2000 watts of continuous pink noise power load, 4000 watts of programmes and peak power of 8000 w.
Features:
Double 18-inch bass extended low frequency output.
Big port area to reduce distortion.
Strong coating shell size and convenient transportation.
14 steel grille lined with soft cloth.
Specifications:
Frequency range (- 10 dB) : 32 Hz - 250 Hz
Frequency response (plus or minus 3 dB) : 37 Hz - 120 Hz
Sensitivity (1 w / 1 m) : 99 dB
Rated power of 2
(continuous pink noise/show/peak) : 2000 W / 4000 W / 8000 W
Rated the loudest level 3:138 dB peak
4 ¦¸ general impedance:
Two input connectors: NL4
Operation mode: the subwoofer
Size (high) x width x deep: 564 mm x 1137 mm x 714 mm
(22.2 "x 44.8" x 28.1 ")
Net weight: 82 kg (82 LBS
