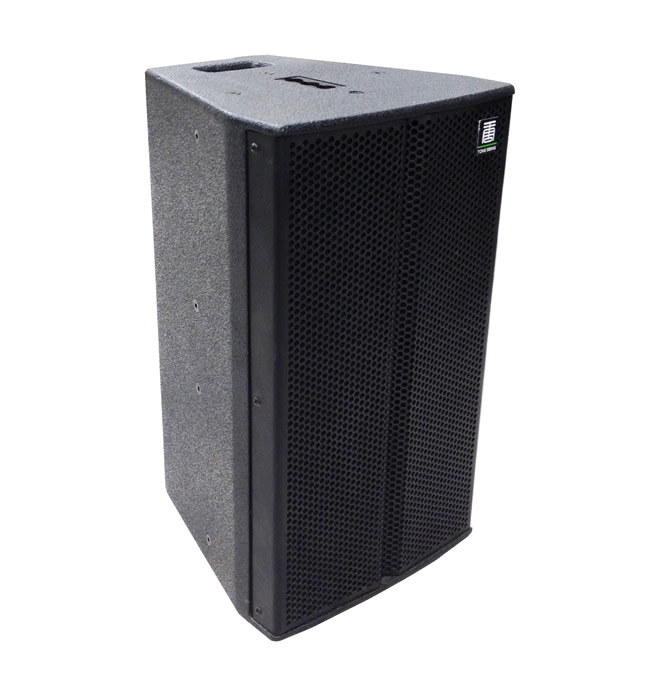

BW series

Time:2015-12-17 | Read:649 | Posted: Site Editor
BW10

System: 1 * 10 inch binary frequency speakers
Frequency response: 65 hz - 18 KHZ (3 db)
Continuous 1000 w power: 250 w peak
Nominal resistance: 8 ¦¸
Sensitivity: 97 db / 1 w / 1 m
The maximum sound pressure: 123 db continuous peak 129 db
Cover Angle: horizontal vertical 50 ¡ã 80 ¡ã
High unit: imported units, 1 inch throat, 25 mm voice coil
The bass unit: custom-made quality unit, 50 mm voice coil
Hanging point: 16 M8 screw hanging point
Connectors: NLV4MP
Support: the base support 35 mm hole
Handle: wooden one
Body material: CNC manufacturing, high density poplar plywood
Waterproof paint processing: the wear-resisting of compound
15 kg weight:
(WxDxH) size: 315 * 330 * 545 mm


BW12

System: 1 * 12 inches of binary frequency speakers
Frequency response: 55 hz - 19 KHZ (3 db)
Continuous 1600 w power: 400 w peak
Nominal resistance: 8 ¦¸
Sensitivity: 98 db / 1 w / 1 m
The maximum sound pressure: 124 db continuous peak 130 db
Cover Angle: horizontal vertical 50 ¡ã 80 ¡ã
High unit: imported units, inches, throat and mouth 35 mm voice coil
The bass unit: custom-made quality unit, 75 mm voice coil
Hanging point: 16 M8 screw hanging point
Connectors: NLV4MP
Support: the base support 35 mm hole
Handle: wooden one
Body material: CNC manufacturing, high density poplar plywood
Waterproof paint processing: the wear-resisting of compound
Weight: 20 kg
Size (W * D * H) : 335 * 345 * 605 mm

BW15

System: 1 * 15 "binary frequency speakers
Frequency response: 52 hz - 19 KHZ (3 db)
Continuous 1600 w power: 450 w peak
Nominal resistance: 8 ¦¸
Sensitivity: 99 db / 1 w / 1 m
The maximum sound pressure: 125 db continuous peak 131 db
Cover Angle: horizontal vertical 50 ¡ã 80 ¡ã
High unit: imported units, 1.5 inches, throat and mouth 75 mm voice coil
The bass unit: custom-made quality unit, 44 mm voice coil
Hanging point: 12 M8 screw hanging point
Connectors: NLV4MP
Support: the base support 35 mm hole
Handle: wooden 2
Body material: CNC manufacturing, high density poplar plywood
Waterproof paint processing: the wear-resisting of compound
Weight: 35 kg
Size (W * D * H) : 430 * 410 * 695 mm
